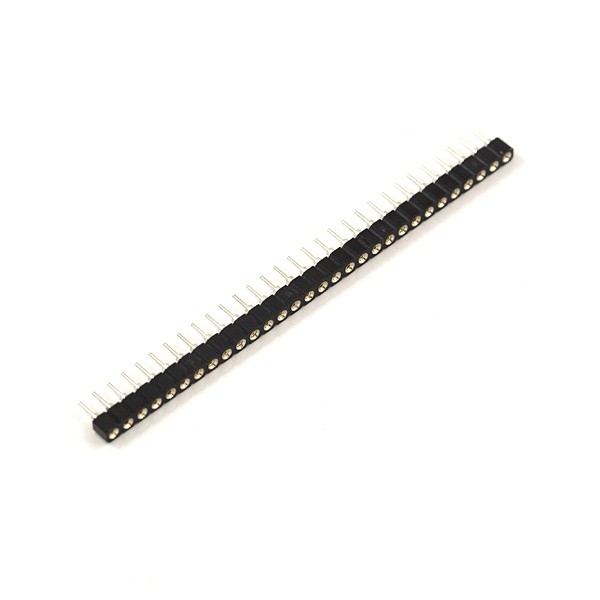

40 Pins Machine Drilled Female Header Pin – Breakable in Any Size

This is a 32 pin, 1-row female header pin. This is a high-quality header pin with swiss round machined pins. It is breakable in any desirable size and has a standard spacing of 0.1” or 2.54mm.

Specification

• Compatible wire: 22-25 AWG
• Current rating: 3A (AC, DC)
• Voltage rating: 100V (AC, DC)
• Withstand voltage: 1000V AC for 1 min
• Contact resistance: 10mΩ
• Insulation resistance: 5000MΩ
• Temperature range: -40℃ to 150℃
