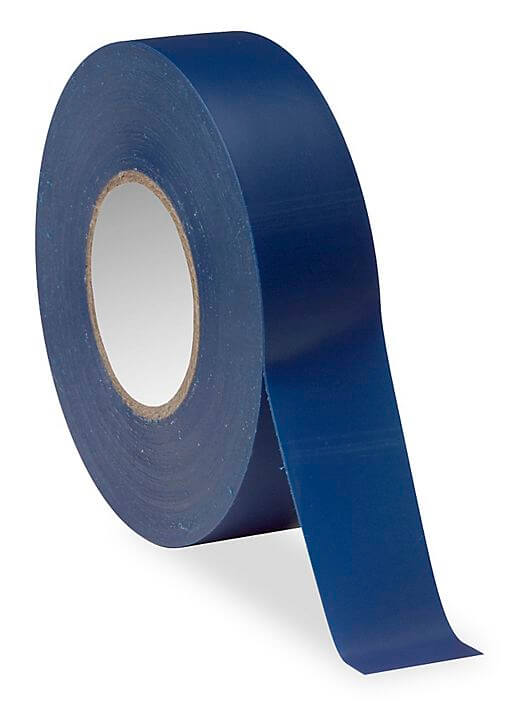

Electrically Insulated Tape PVC Tape blue

Add to wishlist

Product specification of Electrical Insulating Tape

  • Roll Length: 6M
  • Roll Width: 19mm
  • Color: Blue
  • Thickness: 0.180mm
  • Adhesion to steel: 250g/19mm
  • Adhesion to backing: 250g/19mm
  • Elongation: 100%
  • Tensile strength: 3.0kg/15mm
  • Breakdown Voltage: 5kv

₹15.00 (ex. GST)

Add to wishlist

Electrical tape, PVC Tape or insulating tape is used to insulate electrical wires and other materials that conduct electricity. It is a type of pressure sensitive tape. Vinyl is most popular material to make insulating tape as it stretches well and gives an effective and long-lasting insulation, buy other plastics Also can be used.

Color variations of Insulating PVC Tape

A wide range of colour variations is available, but all the different colours have an indication. Black tape is used for insulation and other colours indicates the voltage level and phase. When wires are phased, a ring of tape is placed on each end near the termination to indicate purpose of wire. Below is given colour and purpose table: –

Tape color

Usage (U.S.)

Usage (U.K.)

Usage (International)
Black Insulation
Low voltage, phase A		 Insulation
Low voltage, neutral		 Low voltage, phase B
Red Low voltage, phase B Low voltage, phase A Sheath, 415 V 3 phase
Blue Low voltage, phase C Low voltage, phase C Low voltage, neutral
Sheath, 230 V
Brown High voltage, phase A Low voltage, phase A
Orange High voltage, phase B Sheath, garden tools
Yellow High voltage, phase C Low voltage, phase B Sheath, 110 V site wiring
Green Earth ground Earth



Features of Electrical Insulating Tape

  • Electrical insulation for wire and cable splices
  • Harnessing of wires and cables
  • Chemical and weather resistant
  • Good adhesion flexible backing

Product specification of Electrical Insulating Tape

  • Roll Length: 6M
  • Roll Width: 19mm
  • Color: Blue
  • Thickness: 0.180mm
  • Adhesion to steel: 250g/19mm
  • Adhesion to backing: 250g/19mm
  • Elongation: 100%
  • Tensile strength: 3.0kg/15mm
  • Breakdown Voltage: 5kv
SKU: 884 Categories: , , Tags: , ,
