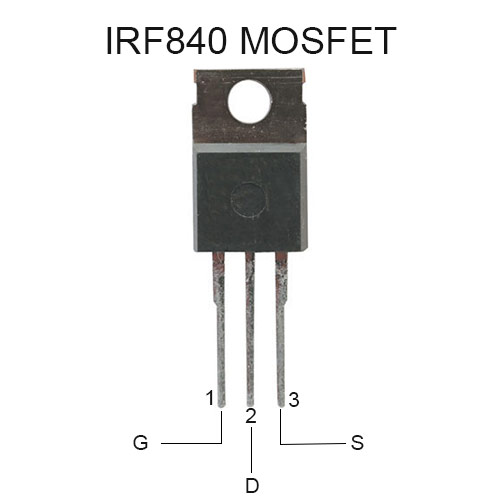

IRF840 N-channel 8A 500V Power MOSFET

IRF840 is an N-channel power MOSFET that can switch load up to 500V 8A rating. This device features fast switching, ruggedized device design, and low on-resistance.

Specification

• Drain-Source voltage: 500V
• Gate-source voltage: ±20V
• Continuous drain current
  • At 25℃: 8A
  • At 100℃: 5.1A
• Pulsed drain current: 32A
• Maximum power dissipation: 125W
• Drain-Source resistance: 0.58ohm
• Operating temperature: -55℃ to 150℃
