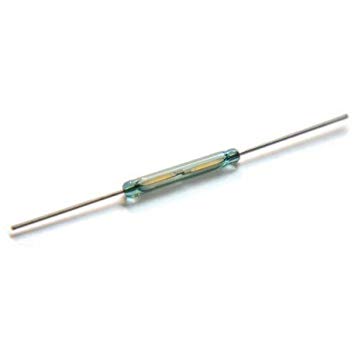

Magnetic Control Reed Switch – 2mm x 14mm

This is a miniature normally open contact type reed switch of size 2mm x 14mm. When the switch is exposed in a magnetic field, the two ferrous pins inside the switch pull together and the switch closes. After removing the magnetic field, the leads separate, and the switch opens. This makes for a great non-contact switch and carries up to 1.2A.

The switch has low contact resistance and ideally suitable for signal switching applications, reed relays, security, monitoring, limit sensing, etc. It is a small and easy-to-use module and can operate in a variety of environmental conditions. It operates very reliably in the -50℃  to +140℃ temperature range.

Feature

• Miniature size and easy to use
• Hermetically sealed switch, contacts are not affected by and have no effect on their external environment.
• Soft leads enable reliable hand forming.
• operates very reliably in the -50℃  to +140℃ temperature range.

Specification

• Maximum voltage: 24V
• Maximum operating current: 1.2A
• Frequency: 100Hz
• Contact resistance: 20 mΩ
• Insulation resistance: 100 MΩ
• Lifecycle: ≅100000
• Operating temperature range:  -50℃  to +140℃
