TC4420 High-Speed 6A MOSFET Driver IC

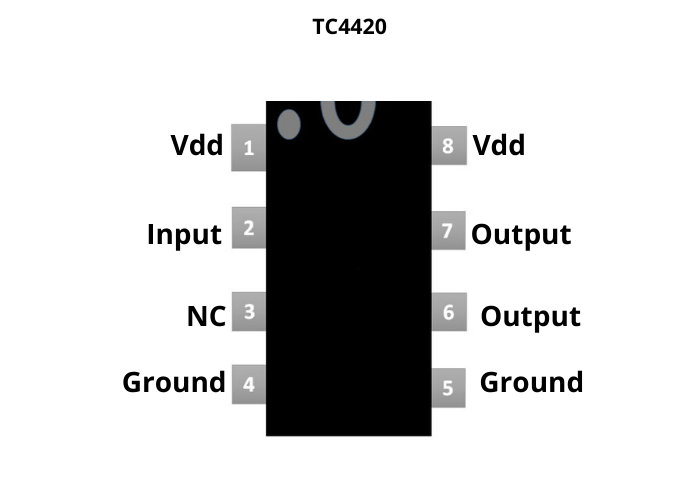

TC4420 is a high-speed non-inverting MOSFET driver with a current rating of 6A. The IC is manufactured with CMOS technology, so it consumes less power and efficient performance. The device eliminates the use of an external level-shifting circuit which results in low cost and space. This driver IC features virtually latch proof and output swing rail-to-rail, which ensures better drive voltage margin during power-up and power-down sequencing.

Features

• ESD and Latch-up protected
• Matched rise and fall time
• High capacitive load drive capability up to 10,000pF
• TTL and CMOS compatible input
• Low output impedance
• Standard plastic tube 8-lead DIP package

Specification

• Supply voltage: 4.5V to 18V
• Supply current: 0.45mA to 1.5mA
• Input current: 50mA
• Peak output current: 6A
• Input voltage: VS + 0.3V to GND – 5V
• Power dissipation: 730mW

Application

• Motor control
• Switching amplifiers
• Pulse transformer driver
• Switch-mode power supply

Package Contains

1 x TC4420/MIC4420 MOSFET Driver IC
