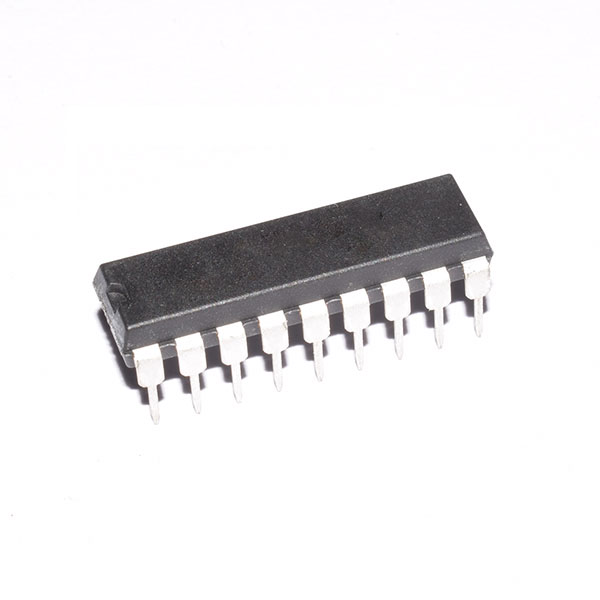

ULN2803 8-Channel NPN Darlington Transistor Array IC

ULN2803 is a Darlington array IC. The device consists of eight NPN Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive load. The collector-current rating of each Darlington pair is 500mA, but pairs may be connected in parallel for higher current capability.

The device has 8 transistors in a single unit, so can drive 8 loads simultaneously. Each transistor in the array acts as an individual and can be triggered On and OFF individually. The IC can be used in programmable load sharing applications.

Features

• Output clamp diode
• Inputs compatible with multiple various types of logic
• High output voltage: 50V
• 500mA rated collector current

Application

• Relay drivers
• Hammer drivers
• Lamp drivers
• Display driver (LED and gas discharge)
• Line drivers
• Logic buffers
• Stepper motor drivers
• IP camera
